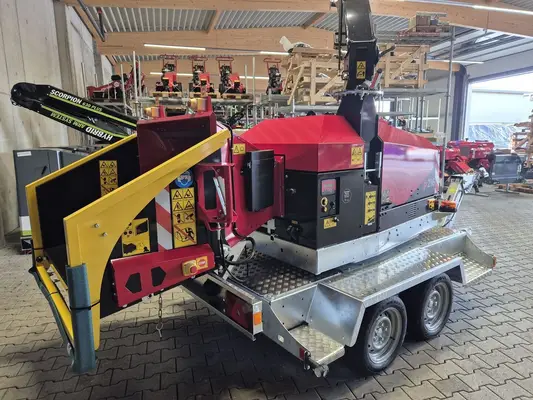

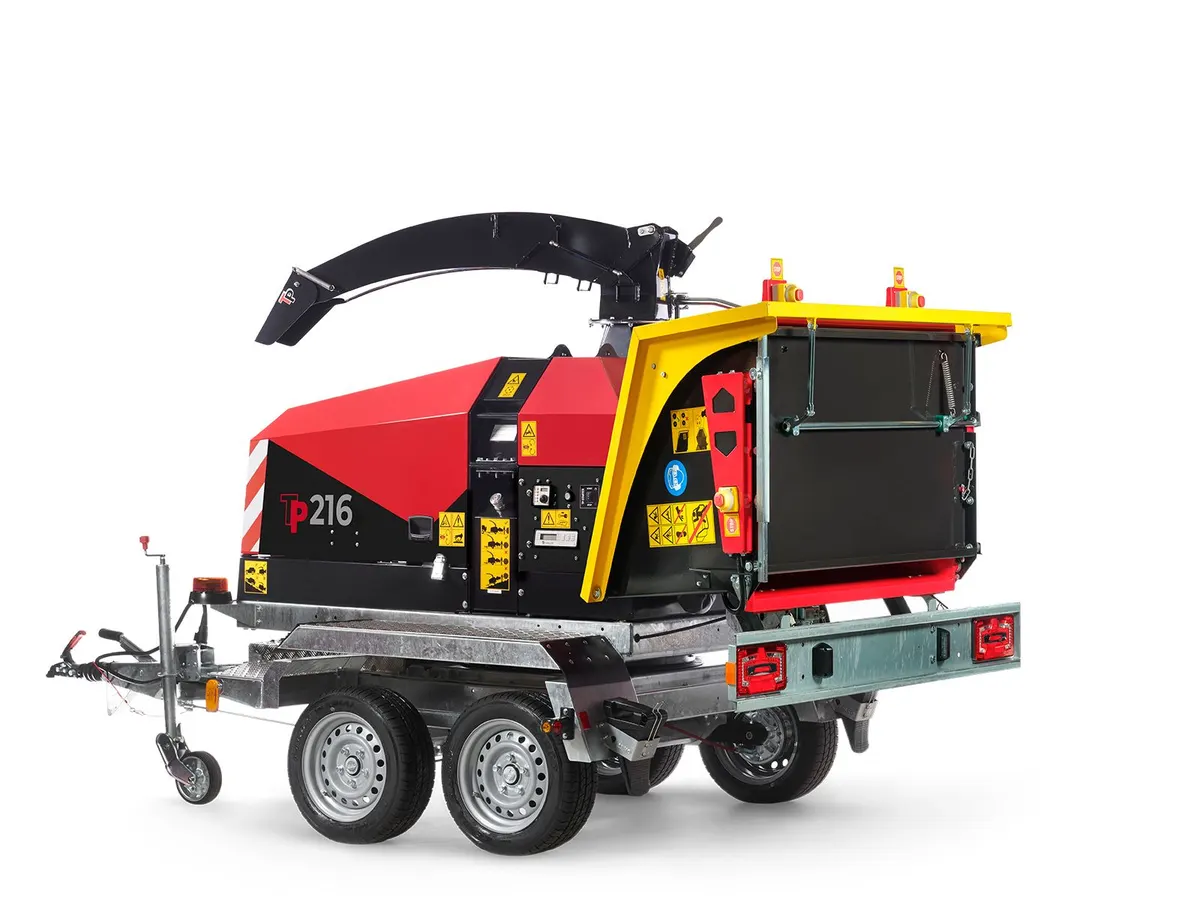

TP 216 Mobile Tandem Wood Chipper / Wood Chipper
Price on request · Schmallenberg
Description
VOGT Profitechnik from Schmallenberg – Your leading provider of professional landscape maintenance technology
= Multiple VOGT locations + 100 service partners in Germany & Austria
= Own VOGT delivery service + mobile VOGT customer service
= Fast and reliable spare parts supply within 24 hours
= High quality standards and excellent know-how since 1926
TP Wood Chipper
Type: TP 216 MOBILE
Max. 215 mm trunk diameter
60 HP (44 kW) HATZ diesel engine (STAGE V)
80 km/h KNOTT car chassis (tandem chassis) incl. TÜV/ABE
270° turntable (rotatable chipper superstructure)
Height-adjustable drawbar
TP FAST CUT
TP AUTO REVERSE (automatic reversing function)
TP EASY CONTROL (electronic feed control)
TP PILOT INTELLIGENCE incl. LOW NOISE + LOW EMISSION
TP STARTER (automatic chipper clutch)
TP VARIO SPOUT (variable discharge adjustment)
TP E-STOP (emergency stop safety device according to standard EN 13525)
Hydraulic feed (216 x 265 mm)
760 mm Ø chipper disc, 2 chipper blades, 270° discharge rotation
Professional wood chipper with 60 HP diesel engine and 270° turntable
= powerful and reliable wood chipper with long service life
= for green waste, twigs, branches and trunk wood up to 215 mm diameter
= increased chipping performance thanks to innovative chipper disc rotor
with higher throughput
= faster & more aggressive feed thanks to reinforced hydraulic system
Robust base frame
= galvanized frame construction with material reinforcements
= 50% more stable than conventional steel
80 km/h ALKO car chassis (tandem chassis)
= robust tandem chassis for safe transport
= steel fenders ideal as step plate for discharge adjustment/maintenance
270° turntable (rotatable chipper superstructure)
= optimal alignment of the chipper unit depending on the work site
= flexible rotation of the chipper allows feeding from
different positions
HEAVY-DUTY feed hopper
= wide, large-dimensioned feed hopper in robust design
= comfortable feeding of massive, heavily branched material
= smaller distance between hopper table and safety bar
prevents unwanted blockage or triggering of the emergency stop device
= feed height + surrounding safety bar complies with EN standard
60 HP (44 kW) HATZ diesel engine (STAGE V)
= powerful and reliable common rail diesel engine (3 cylinders)
= enormous pulling power thanks to optimal torque tuning (205 Nm)
= state-of-the-art engine technology with low pollutant emissions (STAGE V)
= cooling unit on dust-free side (incl. quick-change filter)
HIGH-POWER hydraulic system
= powerful hydraulic system with large oil tank and high-pressure filter
= large, high-torque DANFOSS hydraulic pumps / hydraulic motors
with DUAL TORQUE system ensure strong material feed
= natural hydraulic oil cooling through air circulation of the chipper disc
AGGRESSIVE feed via two feed rollers (double feed 216 x 265 mm)
= two hydraulically driven feed rollers (horizontal arrangement)
= HEAVY-DUTY rollers with massive, continuous feed bars for optimal material feed
= new roller design with continuous feed blades ensures improved feed
for thin branches and green waste
= infinitely adjustable feed speed to adapt
chip size (4-16 mm)
TP AUTO REVERSE
= prevents clogging/jamming of trunk wood in the feed
= no manual operation of the feed control required
TP EASY CONTROL
= electronic feed control via ergonomic control buttons
on both sides of the feed hopper (simple touch contact)
= acceleration of re-start after safety stop
TP STARTER
= patented system for automatic engagement and disengagement of the
chipper disc via electric actuator
= wood chipper is ready for operation at the push of a button and switches
automatically to working mode
= engine speed is automatically increased and the chipper disc is automatically engaged
in the ideal speed range
POWER BELT belt drive
= strong drive via durable V-belts
= ideal power transmission to the chipper disc without power loss
TP TWIN DISC
= unique double chipper disc with stiffened construction through
two welded HARDOX individual discs (760 mm Ø)
= "Sandwich" construction results in significantly higher resistance
and tensile strength while reducing weight (40% savings)
= professionally balanced for smooth, easy running
= 8 internal throwing blades between the chipper discs guarantee
high discharge distance and minimize material clogging in the discharge
TP FAST CUT
= significantly higher feed speed (43 m/min) and
cutting speed (54 m/min) al
Details
- Brand
- TP
- Model
- 216 Mobile-Tandem Holzhacker / Holzhäcksler
- Year of manufacture
- 2026
- Location
- Schmallenberg
