FSI B31/980 TRACK Stump Grinder / Root Grinder
Price on request · Schmallenberg
Description
VOGT Profitechnik from Schmallenberg – Your leading provider of professional landscape maintenance technology
= Multiple VOGT locations + 100 service partners in Germany & Austria
= Own VOGT delivery service + mobile VOGT customer service
= Fast and reliable spare parts supply within 24 hours
= High quality standards and excellent know-how since 1926

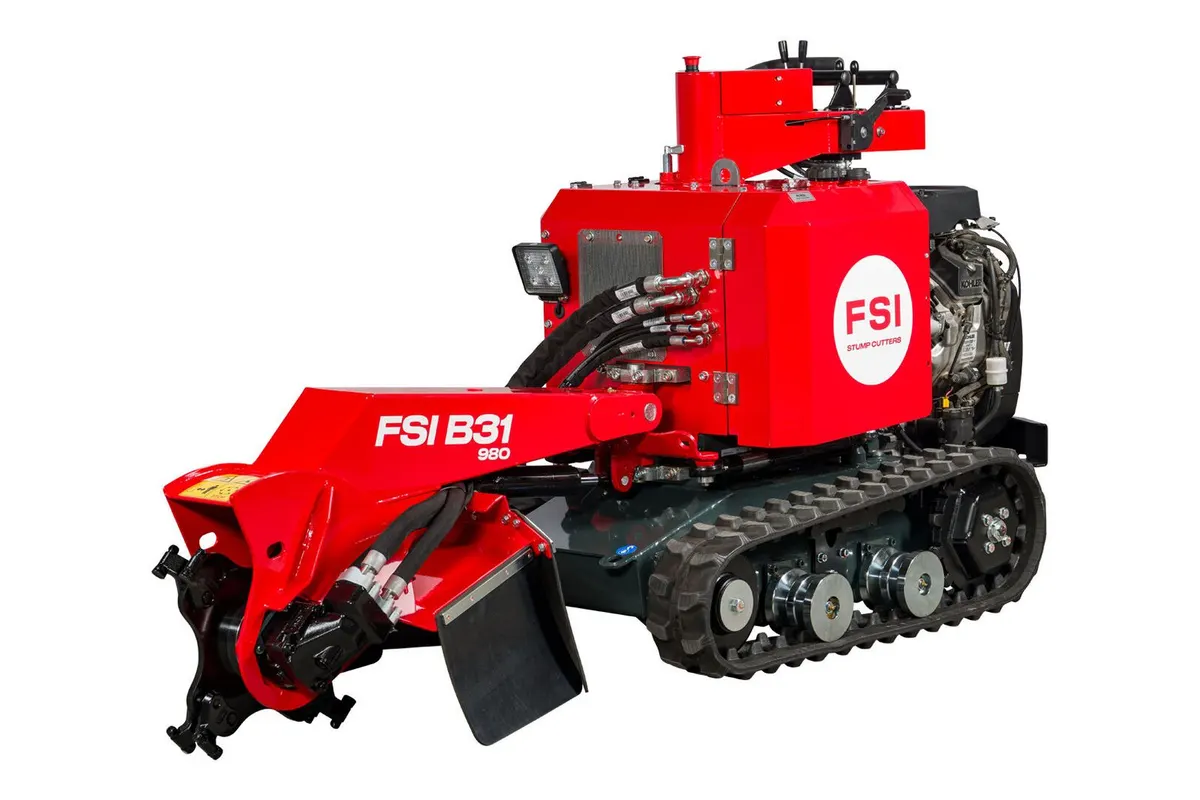

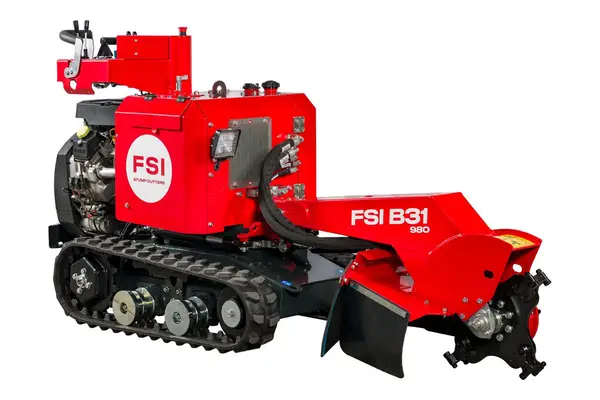

FSI Stump Grinder
Type: B31/980 TRACK
38 HP (28.3 kW) KOHLER gasoline engine
TRACK crawler undercarriage
1200 mm swivel range
740 mm overall width
470 mm milling wheel
8 TRIPLEX milling teeth (25 mm Ø)
Professional stump grinder with crawler undercarriage and powerful 38 HP gasoline engine
= flexible stump grinder with simple operation and
low maintenance requirements
= impressive grinding performance thanks to optimal coordination of
engine power, drive train and milling wheel
Large swivel range (1200 mm)
= efficient grinding work without cumbersome maneuvering of the grinding unit
= robust slewing ring above the wheel axles enables easy handling
= swivel system with two heavy hydraulic cylinders
680 mm grinding height / 400 mm grinding depth
= easy and fast shredding of high-standing tree stumps
= complete underground removal of root runners
Compact design (only 740 mm overall width)
= flexible use even in confined areas
= developed based on European units of measurement (metric system)
38 HP (28.3 kW) KOHLER gasoline engine
= powerful and reliable gasoline engine
= low fuel consumption thanks to electronic HIGH-EFFICIENT
fuel injection
= stable engine mounting with vibration dampers
TRACK crawler undercarriage
= hydrostatically driven track undercarriage
= counter-rotating crawler undercarriage ensures good maneuverability and
excellent off-road capability
= narrow track in confined areas (e.g. between obstacles)
= integrated hydraulic brake for safe standing on slopes
Hydraulic direct drive for milling wheel
= powerful piston motor with high efficiency
= integrated oil cooler for optimal performance at high temperatures
= extremely reliable even under extreme load fluctuations
= hydraulic motor optimally matched to the grinding unit

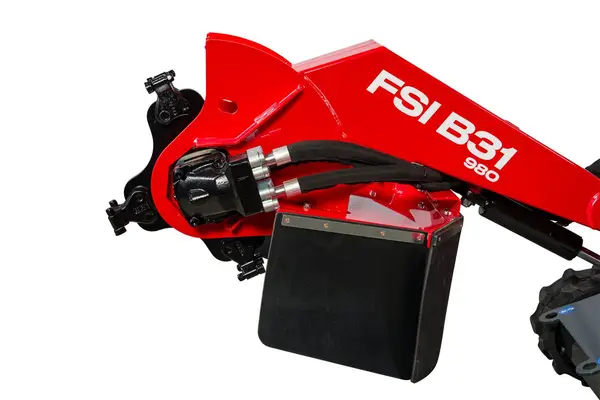

POWER CUT milling disc (470 mm Ø)
= specially hardened milling disc made of wear-resistant HARDOX steel
= offset arrangement of the milling teeth (each tooth cuts a separate track)
= large cutting depth (37 mm) thanks to efficient milling tooth arrangement
= DUAL design (two-part) minimizes vibrations and assembly effort
= star-shaped design improves material removal near the ground
with less power required
= special bearing allows grinding close to obstacles (e.g. curbs)
= 3-sided folding safety guard for the milling disc
8 TRIPLEX milling teeth (25 mm Ø)
= long service life and easy maintenance
= TRIPLEX milling teeth can be used up to 3 times
= wear-resistant tungsten carbide hard metal coating
= milling teeth are individually rotatable and replaceable (quick change)
HIGH-PRECISION control
= fully proportional, sensitive control with unique precision
= control of all operating functions (driving + grinding)
= swiveling control console guarantees very good visibility of the milling wheel
= low-vibration, non-slip hand rest with AUTO-STOP function
(milling wheel stops immediately when not actuated)
EASY SERVICE
= maintenance-friendly design thanks to hydraulic milling wheel drive
= easy and fast turning or changing of the milling teeth
= all maintenance points (lubrication points, engine) easily accessible
= suitable tools for maintenance/replacement included in the scope of delivery
Further standard equipment
= infinitely adjustable swivel speed
= splash guard (minimizes risk of thrown objects)
= LED work light
= operating hours counter
= powder coating (abrasion-resistant and durable)
FSI professional stump grinders made in Denmark
= Europe's leading manufacturer of professional tree stump grinders
= 100% focus on stump grinders (no other production lines)
= "Full-Line" product program (gasoline and diesel engine, wheel drive
or crawler undercarriage, tractor attachment, excavator and wheel loader attachment)
= state-of-the-art production facilities at the plant (Torring, Denmark)
= close cooperation between VOGT and FSI
For questions and further information, we are available by phone or email at any time.
If you are interested, please visit one of our VOGT sales locations so you can personally convince yourself of the machine's performance.
We look forward to hearing from you!
Equipment condition: New machine
Year of manufacture: 2025
Subject to errors, changes and prior sale.
The images are example images.
Details
- Brand
- FSI
- Model
- B31/980 TRACK Stubbenfräse /Wurzelfräse
- Location
- Schmallenberg
