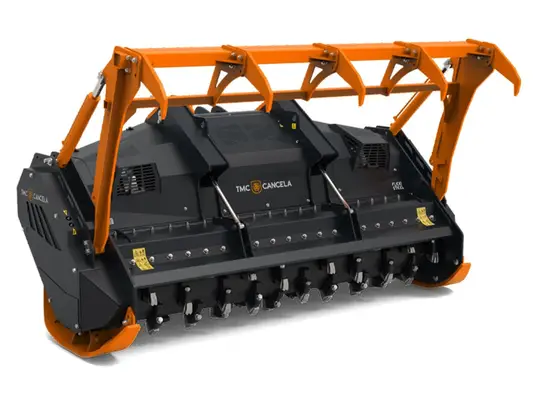

TMC Cancela TFG-225 Forestry Mulcher / Mulching Tiller for Tractor
Price on request · Schmallenberg
Description
VOGT Profitechnik – Your general importer for TMC CANCELA in Germany & Austria
= Large selection of TMC forestry mulchers, forestry tillers & stone crushers for tractors from 50-500 HP
= Over 5,000 m² exhibition space + generous TMC machine storage at multiple locations
= 100 service partners in Germany & Austria
= On-site machine demonstrations
= Own VOGT delivery service + mobile VOGT customer service
= Fast and reliable spare parts supply within 24 hours
= High quality standards and excellent know-how since 1926
TMC forestry mulcher series TFG
Type: TFG-225
225 cm working width
274 cm total width
Rear-mounted
Three-point hitch Cat. 3N
Gearbox 1000 rpm
Gearbox rotating to the right in the direction of travel (clockwise)
BONDIOLI PTO shaft type SH ME
Mulcher side - 1 3/4" Z20 & Tractor side - 1 3/4" Z20
For tractors from 250 HP
Weight: 3,075 kg (without optional accessories)
Includes: Rotor with hammers F55 mounted
Includes: Turbo coupling for the TFG
Includes: Hydraulic push bar with ripper teeth
Includes: On-site machine instruction
Robust professional forestry mulcher made of Flexi Steel
= Forestry mulcher for demanding tasks in forestry up to 550 mm Ø
= Hydraulic rear flap opens for particularly bulky material
and closes to protect against uncontrolled material ejection
Flexi Steel
= High-strength structural steel with high elasticity
= Optimal protection in forestry due to high strength
= Wear parts made of Hardox steel
EASY CONNECT (Patent)
= Hydraulic top link with PTO shaft alignment in W kinematics
= Parallel-guided attachment between gearbox and PTO shaft
= No damage, as it remains in the ideal position throughout
Large rotor diameter with stable wall thickness and 580 mm effective diameter
= Strong suction of mulching material enables the cleanest mulching work
= With fixed tools in a helical arrangement
= Rotor with bolted stubs
Forestry tools with fixed carbide tip
= Specially hardened working tools for long service life
= 42 x F55 tools
= Outstanding resistance to foreign objects
Secondary shredding in chassis and shredding flap (Finish System)
= Special counter blades in the hydraulic front flap of the forestry mulcher
= 1 x fixed row + 4 x bolted (replaceable) short shredding rails made of Hardox
HEAVY-DUTY gearbox 1000 rpm
= Oversized gearbox protects against overload
= Sufficient safety even when using large tractors
= Gearbox standard with integrated freewheel
Turbo coupling for the TFG
POWER-BELT belt drive (5 + 5 XPC belts)
= Strong drive train without power loss
= Additional overload protection under extreme stress
= Integrated fan blade ensures constant cooling
ESB System
= External bearing of the drive shaft directly on the pulley
= Minimization of forces ensures increased service life of the drive train
SIDESTEP System
= Massive protective housing
= Wedge-shaped design deflects mulching material and foreign objects
Hydraulic push bar with ripper teeth
Further standard equipment
= Stable three-point hitch with reinforced, torsion-resistant construction
= Wide, height-adjustable support skids (screw-on) made of Hardox
= Heavy 4-row chain guard + double chain curtain between the lower links
= Robust top and lower link pins made in-house
= All wear parts made of Hardox steel 450
= Includes reinforced PTO shaft, 1 3/4 Z20
TMC Cancela
= Family business since its founding in 1971
= Specialization in forestry/agriculture with an extensive model range
= State-of-the-art production facilities and high vertical manufacturing depth
= Worldwide export to more than 50 countries
For questions and further information, we are available by phone or email at any time.
If you are interested, please visit one of our VOGT sales locations to see the machine's performance for yourself.
We look forward to hearing from you!
Equipment condition: New machine
Year of manufacture: 2025
Errors, changes and prior sale reserved.
The images are sample images.
Details
- Brand
- TMC Cancela
- Model
- TFG-225 Forstmulcher /Mulchfräse für Traktor
- Year of manufacture
- 2025
- Location
- Schmallenberg
