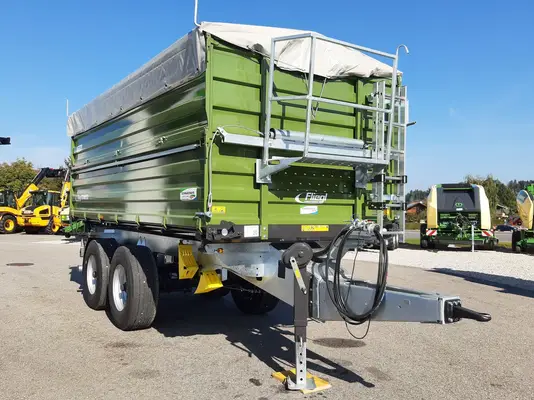

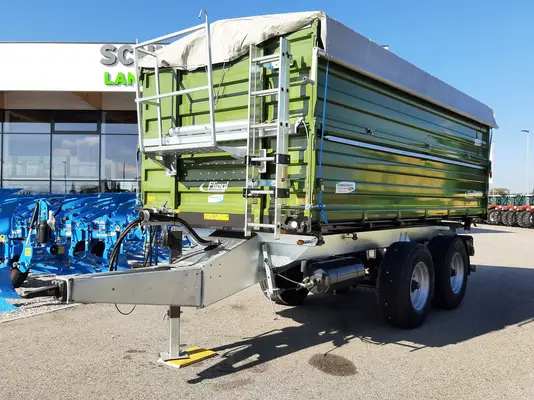

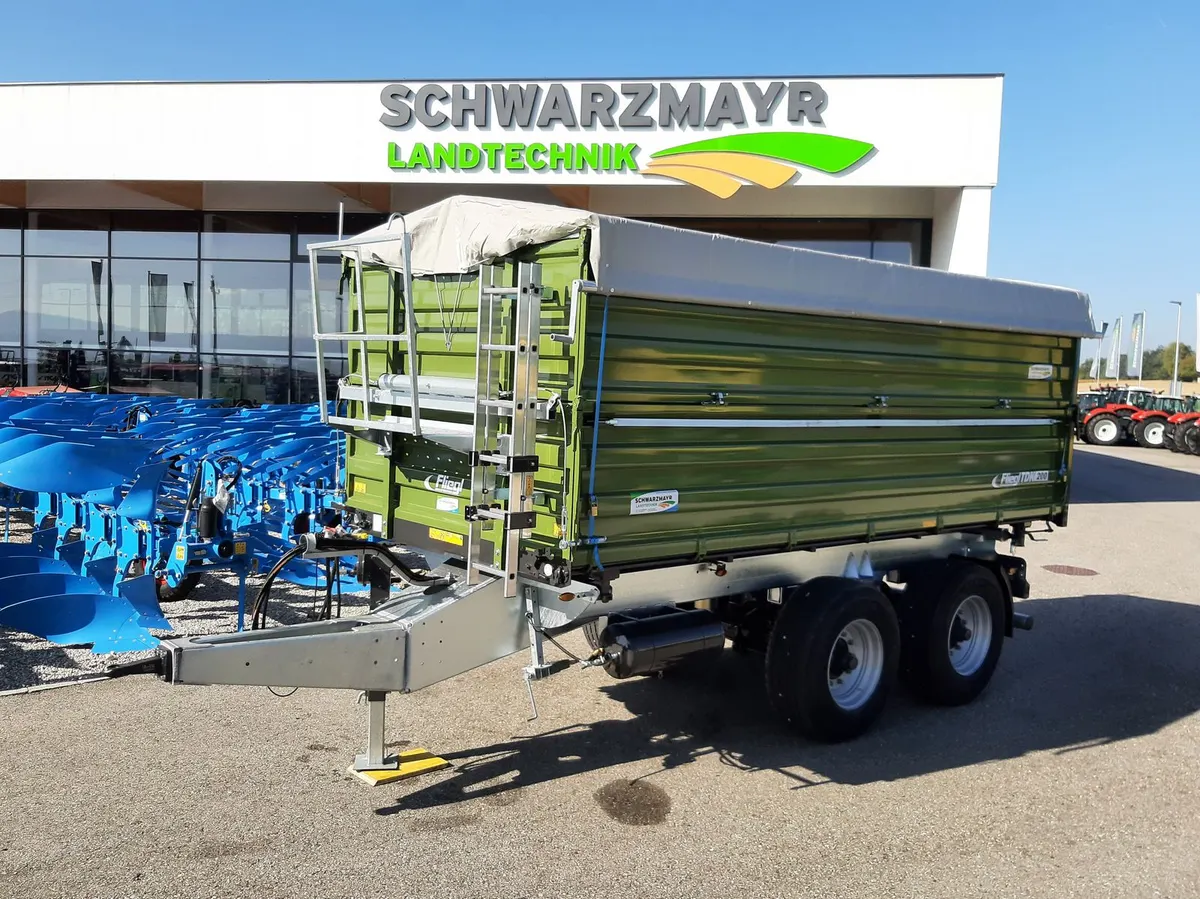

Fliegl TDK 200 FOX
€31,239 · Gampern
Description
Nr. 54219
Tandem 3-way tipper
- with tandem chassis
- with permissible total weight 20000 kg (corresponds to 18000 kg axle load plus 2000 kg drawbar load)
- with professional frame galvanized
- with 5000x2320/2220mm tapered bridge
- with central locking right, left and rear
- with grain outlet 400mm x 230mm in the base side wall
- with removable corner posts, continuous rubber seal guided in special profile
- with bridge frame made of high-quality steel profiles, painted novagrau
- with base side wall 600mm insertion tube, tension strap
- with steel side walls (sandblasted, primed and powder-coated in dark green)
- with first extension 600mm
- with tension chain
- with parabolic suspension Titan unit
- with drawbar unsprung, rotatable for top or bottom attachment
- with DIN drawbar eye 40mm
- with 2 brake axles, both rigid
- with axle design 410 x 120 brake drum BPW
- with 2-circuit compressed air brake with ALB
- with 385/65 22.5 RE tires
- with 40 km/h version with EC type approval and COC papers
- with support leg with 2 speeds / height adjustable
- with tipping cylinder 2150mm stroke, end switch
- with 2 five-chamber lights 12V with 7-pin plug and impact-resistant glass
- with shut-off valve
Additional equipment:
- with base side wall 800mm
- with 1 extension 800mm
- with tires 385/65 R22.5 NEW
- with roll-up cover and platform
- with hydraulic line for 2nd trailer
- with brake connection for 2nd trailer / 2-circuit compressed air brake
- with automatic rear coupling
- with side wall tension springs
Technical data:
- permissible total weight 20000kg
- empty weight 4400kg
- bridge size inside (height) 5000mm
- bridge size inside (width) 2320mm
- platform height 1350 mm
- track width 2050mm
The sales team of Schwarzmayr will be happy to show you the device/machine and asks for an appointment for an inspection at our premises.
We are also there for you on Saturdays until 12:00 noon!
We will also be happy to submit an offer by email.
We look forward to your visit or to an inquiry.
Details
- Brand
- Fliegl
- Model
- TDK 200 FOX
- Year of manufacture
- 2023
- Location
- Gampern
